The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. They are widely used in the modem precision measurement and microwave communication equipment.
| Product Specifications | |||
| Product Specifications | Connector Impedance | 50 Ohm | |
| Frequency Range | DC ~ 4 GHz | ||
| Working Voltage | 500V | ||
| Dielectric Withstanding Voltage | 1000V | ||
| Insulation Resistance | ≥5000 MΩ | ||
| Center Contact Resistance | ≤1.5 mΩ | ||
| Outer Contact Resistance | ≤0.2 mΩ | ||
| VSWR | ≤1.3 | ||
| Operating Temperature | -55℃~ 165℃ | ||

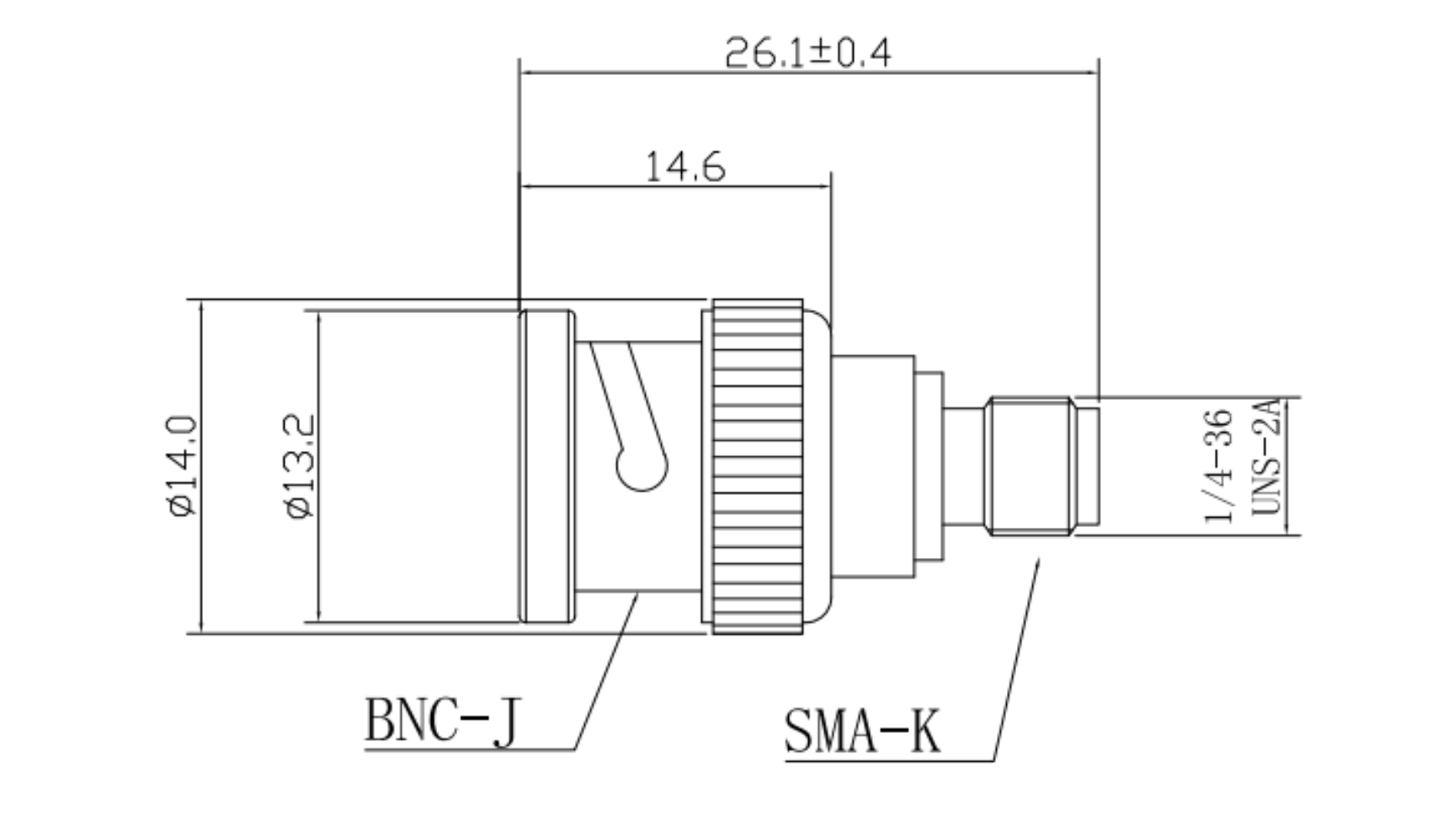

| Materials & Plating | Component | Material | Plating/Coating |
| BNC-J | Copper | Nickel | |
| SMA-K | Brass | Gold | |
| Insulator | PTFE | - | |
| Pin Contact | Phosphor bronze | Gold | |
| Coupling nut | Brass | Nickel | |
| Washer | Bronze | Nickel | |
| Gasket | Silicone rubber | - | |
| Product Specifications | |||
| Product Specifications | Connector Impedance | 50 Ohm | |
| Frequency Range | DC ~ 4 GHz | ||
| Working Voltage | 500V | ||
| Dielectric Withstanding Voltage | 1000V | ||
| Insulation Resistance | ≥5000 MΩ | ||
| Center Contact Resistance | ≤1.5 mΩ | ||
| Outer Contact Resistance | ≤0.2 mΩ | ||
| VSWR | ≤1.3 | ||
| Operating Temperature | -55℃~ 165℃ | ||
| Materials & Plating | Component | Material | Plating/Coating |
| BNC-J | Copper | Nickel | |
| SMA-K | Brass | Gold | |
| Insulator | PTFE | - | |
| Pin Contact | Phosphor bronze | Gold | |
| Coupling nut | Brass | Nickel | |
| Washer | Bronze | Nickel | |
| Gasket | Silicone rubber | - | |
